| 影音天地主旨 ﹝請按主旨作出回應﹞ 上頁 下頁 首頁 尾頁 | 寄件者 | 傳送日期
|
| [#21] etsang3-談修理問題 Tsang Sir and schmike, Thank you very much! Nico |
Shing 正式會員59.xxx.xxx.186 |
2011-03-26 10:53 | |
|
|
|||
| [#22] etsang3-談修理問題 各位師兄,請問那裡可買到紅色絕緣漆? |
mac-bug 正式會員 63.xxx.xxx.225 |
2011-03-31 13:50 |
| [#23] etsang3-談修理問題 絕緣漆在新填地街"一豐"有,我問過要$270一鑵. 絕緣紙,漆皮線,繞線機等都一應俱全. |
k.c 正式會員 119.xxx.xxx.254 |
2011-03-31 14:04 |
| [#24] etsang3-談修理問題 之前問一部LUXMAN LE-109 phono-amp左右大細聲有無得修理？ 我已download咗線路圖自己整番好了！真係好開心！^o^ 但未整好前買咗一部MF V-LPSV8 phono-amp代替LE-109而家變咗無用！ |
新丁仔 正式會員 61.xxx.xxx.116 |
2011-04-03 08:34 |
| [#25] etsang3-談修理問題 Tsang sir and all Ching, Need your advice. Last week, I took out my SP-9 from the HiFi rack and have a look inside the machine. I found that one end of the high voltage capacitor (100uF 450V) is as photo below (which look like cracks but not sure). Do I need to replace it? What type of capacitor should I get to keep the original sound? Thanks.  |
m30 正式會員 218.xxx.xxx.65 |
2011-04-10 11:31 |
| [#26] etsang3-談修理問題 etsang3師兄:請問2x.25uF電容同.25uF有咩分別，謝謝。 |
chi1706 正式會員 221.xxx.xxx.17 |
2011-04-10 15:08 |
| [#27] etsang3-談修理問題 etsang3師兄:應是2x.25uF能代.25uF嗎?，謝謝。 最後修改時間: 2011-04-10 15:30:22 |
chi1706 正式會員 221.xxx.xxx.17 |
2011-04-10 15:29 |
| [#28] etsang3-談修理問題 All ching, Please help! ----------------- Last week, I took out my SP-9 from the HiFi rack and have a look inside the machine. I found that one end of the high voltage capacitor (100uF 450V) is as photo below (which look like cracks but not sure). Do I need to replace it? What type of capacitor should I get to keep the original sound? Thanks. 最後修改時間: 2011-04-17 01:53:33 |
m30 正式會員 219.xxx.xxx.80 |
2011-04-17 01:52 |
| [#29] etsang3-談修理問題 Tsang sir and all Ching, Need your advice. Last week, I took out my SP-9 from the HiFi rack and have a look inside the machine. I found that one end of the high voltage capacitor (100uF 450V) is as photo below (which look like cracks but not sure). Do I need to replace it? What type of capacitor should I get to keep the original sound? ---------------------------------------------- This question i asked Estang3 b4, i try to copy and paste his answer as following: 1. if they are good film caps, no need to replace. But must change all the ecaps which is 10+ years 2. Cap is Cap. Good Quality can be good for Audio and Power supply. A good power supply cap (fast charging, fast response, low ESR etc..) is higher quality than so called Audio cap (actually audio requirement is nothing) 3. go to SSP 街邊檔買d 105度的ecap 試試 following link is what i do: http://www.review33.com/avforum/forum_message.php?topic=55100428181821 hope this can help you 最後修改時間: 2011-04-17 09:53:45 |
roger457 正式會員 1.xxx.xxx.230 |
2011-04-17 09:50 |
| [#30] etsang3-談修理問題 應是2x.25uF能代.25uF嗎? ------------------------------ 你想加大uf 數玩? |
roger457 正式會員 1.xxx.xxx.230 |
2011-04-17 09:52 |
| [#31] etsang3-談修理問題 roger457師兄. 不是想加大玩. 因小弟是初哥1名.在網上見到有2X.25uF 450 VDC的電容才有此壹問.照字面解就是兩倍.25uF.如果換在胆機用以取代.25uF將有咩後果。謝謝 |
chi1706 正式會員 221.xxx.xxx.248 |
2011-04-17 10:37 |
| [#32] etsang3-談修理問題 2x＜----------咪即係加大左, 去買返原本數值好d, 因為你知果粒有乜用  |
roger457 正式會員 1.xxx.xxx.230 |
2011-04-17 12:27 |
| [#33] etsang3-談修理問題 X1, X2 & Y marked at the body of the capacitor certified its capability to be used at circuit connect to Mains Power (e.g. 220Vac in HK). A MKP X2 AC cap can be used in Mains as well as in Audio circuits (power supply or audio signal PCB.) Therefore X2 doesn't mean double the capacitance nor 2 cap inside one body. http://my.execpc.com/~endlr/line-filter.html |
etsang3 正式會員 119.xxx.xxx.111 |
2011-04-17 13:41 |
| [#34] etsang3-談修理問題 就是這種電容.是出於好奇.也是無知!多謝回答。  |
chi1706 正式會員 221.xxx.xxx.209 |
2011-04-17 15:46 |
| [#35] etsang3-談修理問題 2x.25uF 600 VDC  最後修改時間: 2011-04-17 15:52:57 |
chi1706 正式會員 221.xxx.xxx.209 |
2011-04-17 15:50 |
| [#36] etsang3-談修理問題 2X.25 MFD 600 VDC.是出於好奇.也是無知!(是我自已)多謝回答。 最後修改時間: 2011-04-17 19:57:09 |
chi1706 正式會員 221.xxx.xxx.209 |
2011-04-17 19:56 |
| [#37] etsang3-談修理問題 Roger457 hing, Thank you very much! |
m30 正式會員 218.xxx.xxx.60 |
2011-04-18 01:33 |

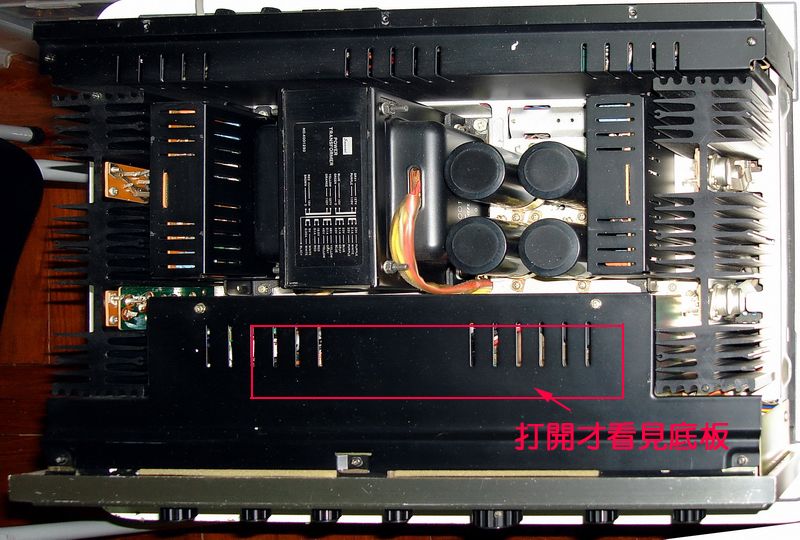

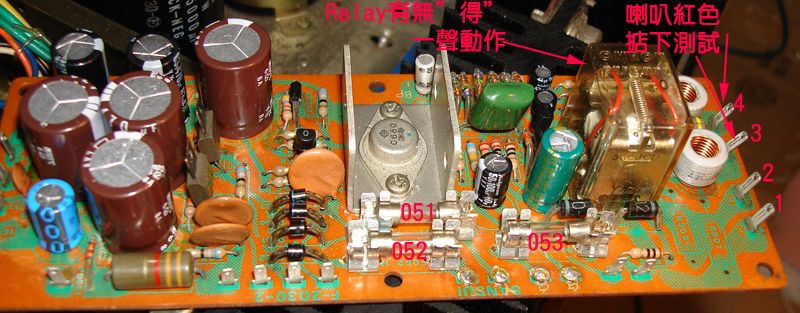

| [#38] etsang3-談修理問題 - AU9500 曾sir 你好！我的9500 出現了問題！請問如要check在那裡呢？用speaker 不能出聲，但用耳機就無問題！ ======================================== 可能喇叭保護板出問題 http://i20.photobucket.com/albums/b206/etsang3/Sansui/AU9500/opencase.jpg 1.耳茼有聲是,喇叭黑線照常接機背黑色.喇叭紅線點下金屬點圖中3或4,睇下有無聲(有就一定係喇叭保護出問題),喇叭紅線接回機背 2.檢查FUSE 051,052,053有無燒 (有就換1A FUSE再試) 3.開電時,檢查喇叭保護relay有無"得"一聲,及看見佢動作 (無就換TR910,TR902先,都系唔郁就換埋Relay) http://i20.photobucket.com/albums/b206/etsang3/Sansui/AU9500/protection.jpg service manual ============ http://elektrotanya.com/sansui_au9500_sm.pdf/download.html |
etsang3 正式會員 119.xxx.xxx.111 |
2011-05-08 18:14 |
| [#39] etsang3-談修理問題 - AU9500 2x.25uF 600 VDC 好似係等如2組.25uf,可接成0.25uf或0.5uf ＞.＜ |
tomeectom 正式會員 112.xxx.xxx.49 |
2011-05-09 14:27 |
| [#40] etsang3-談修理問題 - AU9500 Mr. Tsang 您好， 我有部Onkyo後級M-504，有兩組喇叭輸出，最近發現果兩個繼電器成日“的的得得”不停咁跳制，時好時壞！ 請問是否須要更換新的繼電器便可？還是有其他地方壞了？煩請賜教。謝謝！ 最後修改時間: 2011-05-11 14:39:31 |
bm3bm3bm 正式會員 202.xxx.xxx.181 |
2011-05-11 14:37 |
