| 影音天地主旨 ﹝請按主旨作出回應﹞ | 寄件者 | 傳送日期
|
| [#1] Mark levinson no.39 遙控求教 Mark levinson no.39 CD player 搖控使用求教! 想請教哪位師兄知道怎樣調教NO.39搖控可以連38S前級一起搖控呢! 謝謝各位師兄賜教！  最後修改時間: 2022-03-21 01:58:16 |
Ho3206 正式會員223.xxx.xxx.189 |
2022-03-21 01:52 | |
|
|
|||
| [#2] Mark levinson no.39 CDP & Preamp  |
Ho3206 正式會員 223.xxx.xxx.189 |
2022-03-21 01:56 |
| [#3] Mark levinson no.39 用戶手册有講。  |
Kenny 正式會員 42.xxx.xxx.223 |
2022-03-21 10:35 |
| [#4] Mark levinson no.39 謝師兄指教，我沒有用戶手冊，Link cable是什麽線來的？ |
Ho3206 正式會員 223.xxx.xxx.189 |
2022-03-21 23:05 |
| [#5] Mark levinson no.39 遙控求教 .  |
phil.ng 會員 223.xxx.xxx.187 |
2022-03-21 23:43 |
| [#6] Mark levinson no.39 遙控求教 download them la haha https://www.manualslib.com/manual/821814/Madrigal-Audio-Mark-Levinson-39.html https://www.marklevinson.com/on/demandware.static/-/Sites-ML-US-NCOM-Library/default/dw33ff9e63/glp/support/downloads/No390S/Mark-Levinson-No390S-Manual.pdf 最後修改時間: 2022-03-21 23:48:12 |
hahayanyan 正式會員 49.xxx.xxx.58 |
2022-03-21 23:46 |
| [#7] Mark levinson no.39 你可以 Google search "Mark Levinson 39 Link Cable", go Manualslib.com result, page 24 of ML 39S manual..... 仲有其他ML型號用戶手册教你整缐。有的會詳細少少。 ML Link cable 我估係LAN線不過接線位有的不同 (插頭 Pre-amp RJ45 8 wire, Power amp RJ12 6 wire)。佢話180度反相。我覺得如果你知發生乜事、可以揾師傅同你夾缐試下。Linked 咗之後、開關、大细聲、方便好多。 條缐同廠買成千蚊我估。個個都係自己整。PS: 我冇整過 Mark仔缐。但有用完全唔同 Link cable。我估個個牌子設計都唔同。  最後修改時間: 2022-03-22 00:04:15 |
Kenny 正式會員 42.xxx.xxx.223 |
2022-03-21 23:47 |

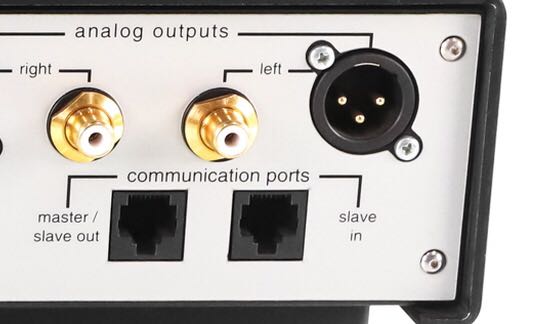

| [#8] Mark levinson no.39 遙控求教 SLAVE AND MASTER COMMUNICATOR PORTS These communications ports allow the No380S to “link” to certain compat- ible Mark Levinson components. (See “Linked Functions.”) The Mark Levinson Linking system uses a Digital Audio Processor as the Master of (and central clearinghouse for) inter-component communications. Other components such as digital transports are connected to the Master as “Slaves,” and can be “daisy-chained” using their Slave In and Slave Out jacks. As the ultimate destination of all source signals, the No380S Preamplifier must be the final “Slave” in the chain. (In technical terms, it terminates the communications bus.) In turn, the No380S can serve as a master to an asso- ciated compatible Mark Levinson power amplifier—hence its “Master” com- munications port. Thus, if the only other Mark Levinson Link-compatible component you have is a digital audio processor, connect its master port to the No380S’ slave port using a “straight-through” RJ-45 cable. If there are additional Mark Levinson Link-compatible components in the system, place the No380S at the end of the chain by connecting the last slave out port to the No380S’ slave port. See the diagram (left) for clarification. The RJ-45 cable needed for the Link connection between source compo- nents and the preamplifier may be purchased from your Mark Levinson dealer. It may also be easily and inexpensively made to length using two RJ-45 connectors and the appropriate length (up to 100 feet/30 meters) of RJ-45 (flat, eight conductor) cable. RJ-45 cables and connectors are used throughout the world for both tele- communications and computers, and are widely available at low cost. The connectors are crimped on to the ends of the cable such that pin 1 at one end is connected to pin 1 at the other end. Such a “straight-through” con- nection is (counter-intuitively) made by introducing a 180° twist in the cable between the two ends, as shown below. To Mark Levinson® digital processor To No380S Locking tab 180° twist Locking tab The power amplifier Link connection is made using a 6-conductor Link cable. Connect the No380S’ master port to the slave port of a compatible Mark Levinson power amplifier. |
phil.ng 會員 223.xxx.xxx.187 |
2022-03-21 23:49 |
| [#9] Mark levinson no.39 遙控求教 38s  |
phil.ng 會員 223.xxx.xxx.187 |
2022-03-21 23:52 |
| [#10] Mark levinson no.39 遙控求教 謝謝幾位師兄的賜教，THANK YOU VERY MUCH ! |
Ho3206 正式會員 223.xxx.xxx.189 |
2022-03-22 04:52 |
| [#11] Mark levinson no.39 遙控求教 各位師兄小弟用了RJ-45網線連接上CD39機和38S前級也未能控制到前級，是否需要SET什麽的呢，以前小弟用Mcintosh時接上連接線就直接搖控到，不需要SET任何野，又請教大家了！？ |
Ho3206 正式會員 223.xxx.xxx.189 |
2022-03-28 22:33 |
| [#12] Mark levinson no.39 遙控求教 how do u connect it ? one end of RJ-45 to 38S master port and the other end of RJ-45 to CD39 slave port? or? u downloaded and read the manual yet? |
hahayanyan 正式會員 180.xxx.xxx.16 |
2022-03-28 23:01 |
| [#13] Mark levinson no.39 遙控求教 Please download the 39 menu for a look see..... suggest doing the following: 1. Check the cable. See if pin 1 is connected to pin 1, pin 2 to 2, pin 8 to 8 etc, by using a multi-meter. 2. If cable is OK. Master out is 39 CD player, Slave in is 38 pre-amp 3. If cable is OK, power off. Then power-on 1 by 1 -- Master 39 is power on 1st -- Slave 38 is power on 2nd 4. Follow the instruction on pg 31 (pic below) 5. Check the links by pressing the mode button pg 43 Have fun....... if not working, send an email to Mark Levinson to confirm if a normal Cat 6 cable works or not as a link communication cable.  最後修改時間: 2022-03-28 23:37:33 |
Kenny 正式會員 42.xxx.xxx.223 |
2022-03-28 23:36 |
| [#14] Mark levinson no.39 遙控求教 FYI....... this is from a newer model..... (it comes with a link cable in the box I think)  |
Kenny 正式會員 42.xxx.xxx.223 |
2022-03-28 23:53 |
| [#15] Mark levinson no.39 遙控求教 one end of RJ-45 to 38S master port and the other end of RJ-45 to CD39 slave port , can't control. I use the original RJ45 network cable，I think it should be a line problem. |
Ho3206 正式會員 223.xxx.xxx.189 |
2022-03-31 22:27 |
