最新資訊 - 影音
本文作者:Review33 團隊發佈日期:2016-03-07 21:08:16
在Facebook 專頁按「讚好」,免費影音資訊自動送上
美國 Power Modules inc. 推出 The Belles Aria 合併式放大器

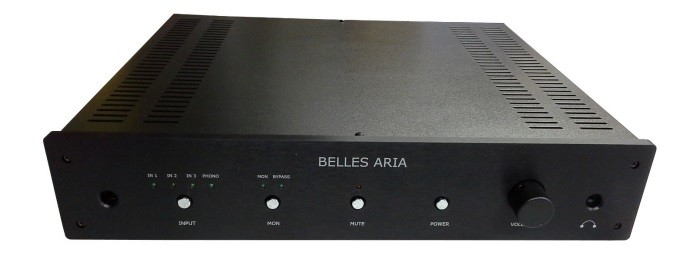

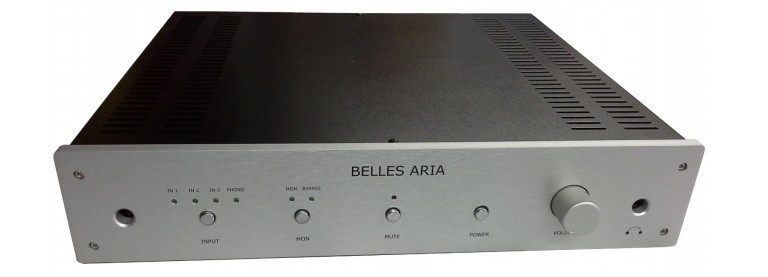

由 David Belles 創立的美國品牌 Power Modules inc. ,專門生產及研發音響部件,公司產品以 Hi-end 及 State-of-the-art 作為理念,David Belles 本人更有超過三十多年的設計經驗,可說是一名資深音響設計人。這次 Power Modules inc.宣布,推出自家的合併式放大器 The Belles Aria 合併式放大器,價格約為USD$1,995,同時提供黑色及銀色外觀。
The Belles Aria 合併式放大器內部經精心佈局,極力縮短各部份的線路,所有組件均考慮必要性才後納入,當中包括唱頭放大、線性輸入、耳機放大、功率放大等線路設計,均以環環相扣方式設計,務求得出最簡潔及直接的線路。用料方面,唱頭放大、耳機放大及前級放大均採用了 Burr-Brown 的製品。功率放大方面則採用了 MOSFET 晶體管,提供每聲道 8 ohms 時達 75W 輸出。

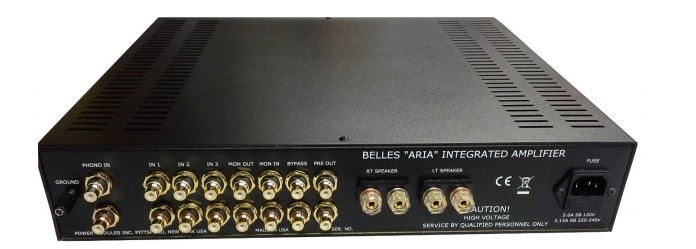

其他規格方面,提供三組 RCA 輸入,一組 MM 唱頭輸入,一組錄音輸出,一組 By pass 輸出,尺寸為 16.5" ( 419 mm ) x 3.125" ( 79 mm ) x 14" ( 356 mm ) (W x H x D),重量為 30 pounds ( 13.6Kg )。
來自美國的 Power Modules inc. 知名度雖然不高,但主事人 David Belles 憑藉多年設計音響經驗縱橫數音響業三十餘年,這次推出的 The Belles Aria 可算是多年設計經驗下的果實,75W 的輸出亦不唬人,但由規格、設計及價錢可以看出廠方風格充滿沉穩的作風,以實用性、品質及性價比作招徠。
Specifications:
Power Amplifier Section:
- Power Rating: 75 watts into 8 ohms, both channels driven, 125 watts into 4 ohms, both channels driven, 112 watts peak onto 8 ohms, one channel; driven 175 watts peak into 4 ohms, one channel driven
- Damping factor : over 2000 at 1kHz
- Peak current : over 16 amperes
- Input Impedance : 47,000 ohms
- Input Sensitivity : 1.2 volts for 75 watts
- Gain : 21 voltage ratio or 26.4 dB
- Frequency Response 3dB : 0.6 to 100,00 Hz
- Noise : greater than 100dB
Line Section:
- Frequency Response 3dB : 1.5 to 250,00 Hz
- Distortion : IM and THD less than 0.001%
- Gain : 3 voltage, 9.54 dB
- Noise : over 100 dB
Moving Magnet Phono Section:
- Frequency Response : 20 to 20,000 Hz +/‐0.05 dB
- Gain : 33 dB at 1kHz
- Noise : over 80 dB
- Distortion : less than 0.0001%
Headphone Section:
- Power : 600 milliwatts onto 30 ohms peak
資料來源:http://www.powermodules.com/ariasintegrated.html


Last modified: 2016-03-07 21:08:16
